Drop-in Circulator
Brand Name: EFine
Type: circulator
Frequency Range: 746-768 MHz
Feature: Easy Installation
Connector Type: TAB
Sample: Available
MOQ: 1 Set
Packing: Wooden Box
Product Description
The incident wave entering any of its ports is transmitted to the multi-port device of the next port in the order determined by the static bias magnetic field. A Drop-in Circulator is a non-reciprocal device with several terminals. For example, if a signal is input from port 1, the signal can only be output from port 2. Similarly, a signal input from port 2 can only be output from port 3, and so on, so it is called a circulator.
The principle of one-way transmission of the Drop-in Circulator is due to the use of ferrite gyromagnetic materials. This material produces gyromagnetic properties (also known as tensor permeability properties) under the combined action of an external high-frequency wave field and a constant DC magnetic field. It is this gyromagnetic characteristic that makes the electromagnetic wave propagating in the ferrite rotate polarized (Faraday effect), and the electromagnetic wave energy is strongly absorbed (ferromagnetic resonance). It is this gyromagnetic phenomenon that makes the structure. Type isolators, circulators. It has the characteristics of small size, wide frequency band, small insertion loss, etc., so it is widely used.
Specification
Name | Drop-in circulator |
Insert loss | ≤0.25dB |
Frequency | 746-768 MHz |
Isolation | ≥23 dB |
VSWR | ≤1.18:1 |
Power | 100W |
Connector Type | TAB |
Temperature | -40℃~+90℃ |
Storage Temperature | -45℃~+95℃ |
Package | Wooden box & carton |

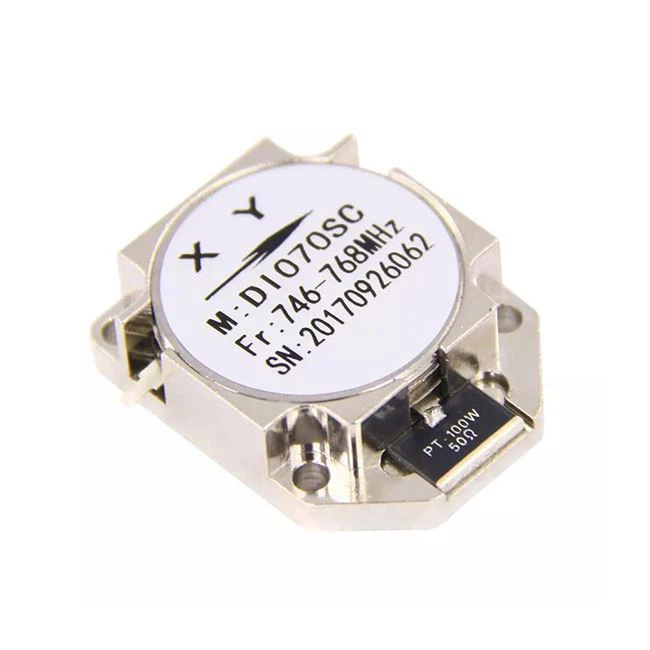

Product Image
 |  |
 |  |
Features and Applications
The outstanding feature of the Drop-in Circulator, also known as the isolator, is the one-way transmission of high-frequency signal energy. It controls the transmission of electromagnetic waves along a certain circular direction. This characteristic of one-way transmission of high-frequency signal energy is mostly used between the output end of the high-frequency power amplifier and the load, which plays a role of being independent and "isolated" from each other. The load impedance does not affect the working state of the power amplifier even under the condition of open circuit or short circuit, thus protecting the power amplifier.
