GML670 Hot Sale Full Bridge Micro Load Cell For Force Test equipment

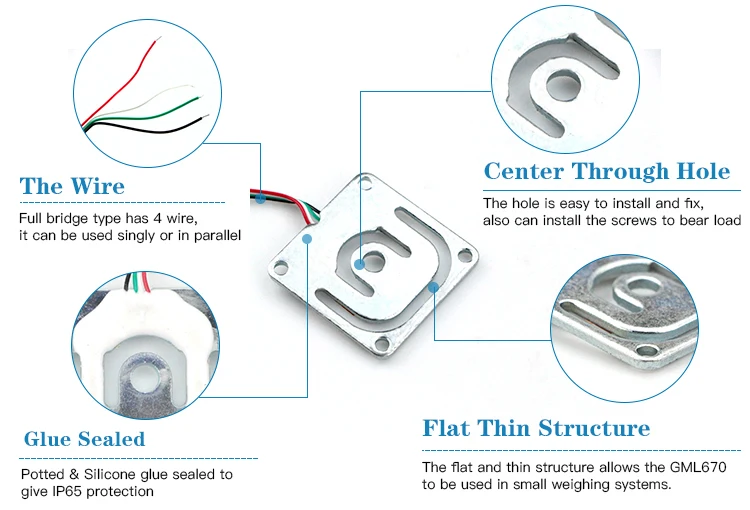

The Features
1. Material: manganese steel, surface anodic oxidation treatment;
2. High precision, half bridge and full bridge available;
3. Application: portable scale and other miniature electronic weighing equipment
4. Bulk order will get more competitive price, please inquiry us to get a quote!
Product Details

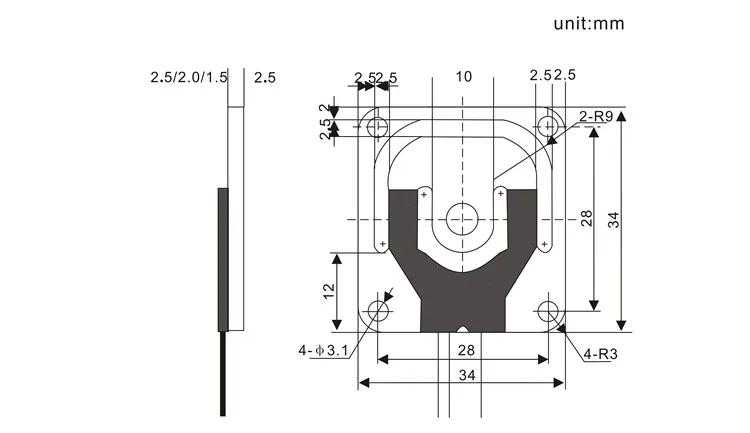

Dimension
Range:10kg t:1.5mm,T:3.5±0.2mm
Range:30kg t:2.0mm,T:4.0±0.2mm
Range:50kg t:2.5mm,T:4.5±0.2mm
Rated capacity | 10, 30, 50kg | Input resistance | 1000±10Ω |
Rated output- full bridge | 2.0±0.15mV/V(30-50kg) | Output resistance | 1000±10Ω |
1.0±0.15mV/V(10kg) | Temp. effect on span | 0.05%F.S/10℃ | |
Rated output- full bridge | 1.0±0.15mV/V(30-50kg) | Temp. effect on zero | 0.1%F.S/10℃ |
0.5±0.15mV/V(10kg) | Excitation voltage | 3-10VDC | |
Comprehensive error | 0.05%F.S | Compensated temp.range | -10~+40℃ |
Non-linearity | 0.05%F.S | Safe overload | 120%F.S |
Repeatability | 0.05%F.S | Ultimate overload | 150%F.S |
Hysteresis error | 0.05%F.S | Defend grade | IP65 |
Creep | 0.05%F.S/3min | Cable | Three or Four color PVC wires |
Zero output | ±0.3mV/V | Cable length | φ0.8*200-400mm |
Insulation resistance | ≥2000MΩ |
Weighing Solution

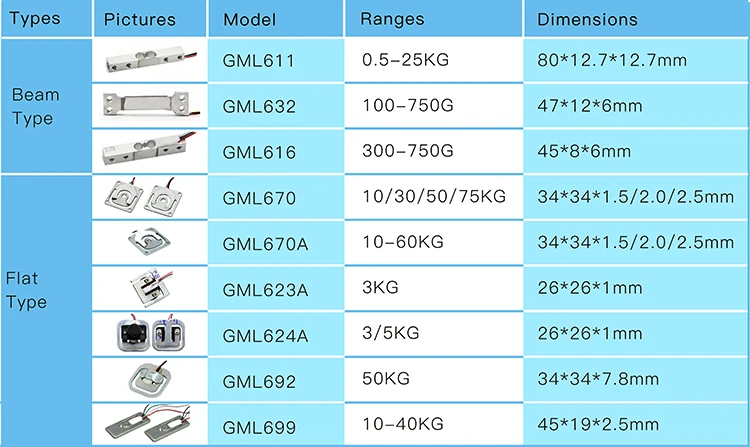

Other Product
