Waveguide Combiner
Product name: 3DB Waveguide Combiner
Type: Waveguide Components
Material: Copper, Aluminum, etc.
Usage: Communication Equipment
Feature: Easy Assembly
Sample: Available
Packing: Carton
Despriction
Waveguide Combiner is also called waveguide bridge. It is often used as waveguide 90 ° power distributor / synthesizer in microwave engineering. When used as a distributor, its output signal phase difference is 90 degrees, and when used as a synthesizer, its input signal phase difference is required to be 90 degrees. According to the location of the coupling window, it can be divided into H-plane bridge (narrow side coupling) and E-plane bridge (wide side coupling).
Waveguide Combiner with this structure can also realize unequal power distribution between 3-7db. Therefore, as a power distributor / synthesizer, corresponding products can be provided according to different requirements of users for distribution ratio. According to different structural shapes, it can be divided into I-type, U-type, X-type, Yu type and Y-type as shown in the above figure, and its working principle is shown in the following figure.
Feature
The waveguide 90° power divider has the following characteristics:
the signal input from port A will be distributed and output at ports B and C, and the signal phase difference between B and C is 90 degrees, and the ports A and D are isolated; D port is usually connected to the load. When the coupling degree is 3dB, the output signal amplitudes of ports B and C are equal; for the narrow-side coupler power divider/combiner, the phase of the output signal of port C is 90 degrees delayed from the phase of the output signal of port B. For the power distribution of the wide-side coupler synthesizer/synthesizer, the phase of the output signal of port C is 90 degrees ahead of the phase of the output signal of port B.
The waveguide 90 ° power synthesizer has the following characteristics:
the signal with a phase difference of 90 degrees input from ports B and C will be synthesized and output at port a, and port D will be isolated (connected to the load).
Specification
| Part Number | Frequency Range (GHz) | Waveguide Type | Ways | VSWR | Insertion Loss | Amp Unbalance | Power |
| RWCB430W2C | 1.70~2.60 | WR430 | 2-Way | 1.2 | 0.25 | 0.5 | 1000 |
| RWCB340W2 | 2.20~3.30 | WR340 | 2-Way | 1.25 | 0.25 | 0.5 | 1000 |
| RWCB90W2 | 8.20~12.40 | WR90 | 2-Way | 1.2 | 0.5 | 0.5 | 200 |
| RWCB75W2C | 10.00~15.00 | WR75 | 2-Way | 1.3 | 0.8 | 0.5 | 200 |
| RWCB62W2A | 12.40~18.00 | WR62 | 2-Way | 1.25 | 0.5 | 0.3 | 200 |
| RWCB42W8 | 18.00~26.50 | WR42 | 8-Way | 1.4 | 0.5 | 0.5 | 200 |
| RWCB28W4B | 32.00~38.00 | WR28 | 4-Way | 1.6 | 0.7 | 0.5 | 200 |
Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Manufacturing Technique
Company Profile
Xi'an WinFine Telecom Technology Pte.,Ltd (WinFine Telecom hereinafter) is a leading microwave waveguide components, assemblies and antenna systems manufacturer in China. Established in 2011, WinFine Telecom is continually growing to meet customer's needs. Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs.
Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements. Our standard delivery time is only half of the average western supplier's standard delivery time.

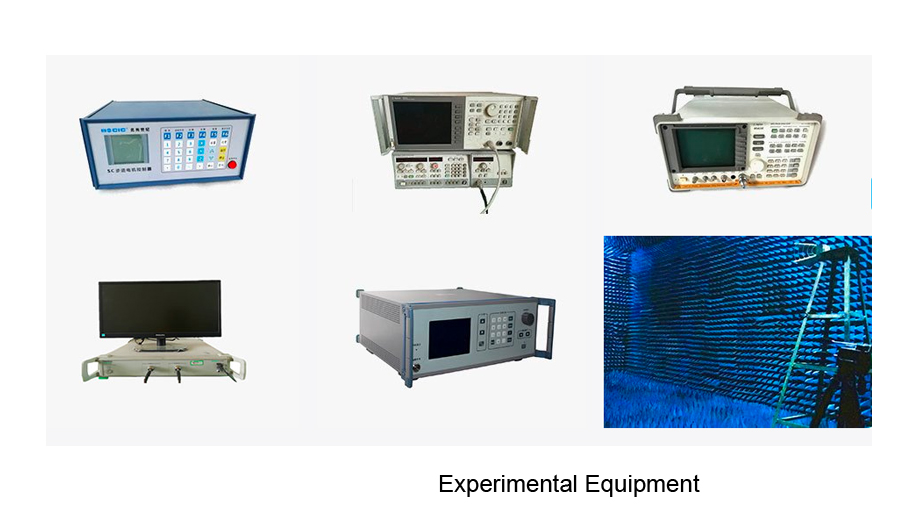

Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components. We implement TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction.
We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery.
