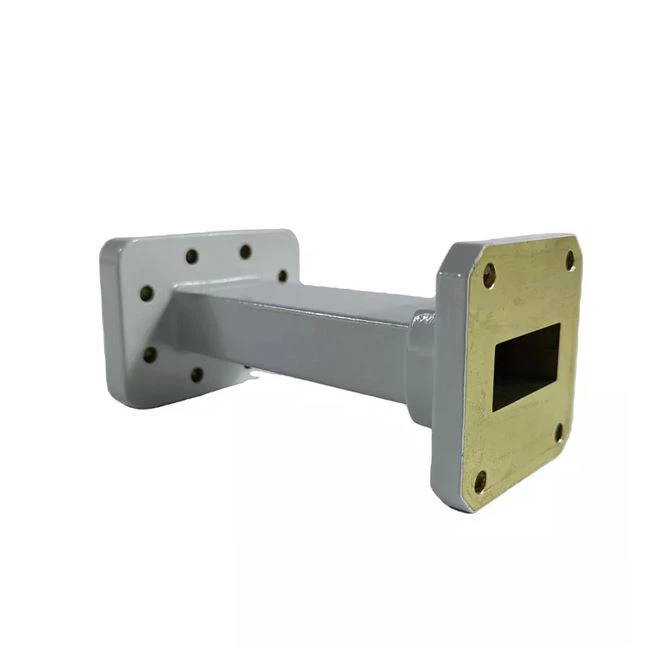

Rectangular Straight Waveguide
Product name: Rectangular Straight Waveguide
Material: Copper, Aluminum
Feature: Easy Assembly
Application: Electromagnetic Theory
Warranty: 1 Year
Sample: Available
Product Description
Rectangular Straight Waveguide is an important guiding wave device that uses metal tubes to transmit electromagnetic waves. The tube walls are usually copper, aluminum or other metal materials, which are characterized by simple structure and high mechanical strength. Waveguide has no inner conductor, low loss, large power capacity, electromagnetic energy is guided to spread in the inner space of the waveguide, can prevent external electromagnetic leakage. It can transmit only TE or TM waves.
The transmission mode of rectangular guided waves
Various TM and TE modes, as well as their linear combinations, can appear in rectangular guided waves. When the operating wavelength is less than the cutoff wavelength of each mode, or when the operating frequency is greater than the cutoff frequency of each mode, these modes are transmission modes, so the waveguide can form multimode transmission.
The cutoff frequency is not only dependent on the waveguide and size, but also on the medium filled in the waveguide.
Transmission characteristics of rectangular guided waves
If the electromagnetic wave can be transmitted in the waveguide, it must be F > FC or λ<λ C, from which the propagation characteristic parameters of various modes of electromagnetic wave transmitted in the waveguide can be obtained.
The propagation velocity of TM wave and TE wave varies with frequency, showing dispersion characteristics.
In the case of multimode transmission in the Rectangular Straight Waveguide, if the modes are orthogonal to each other, there is no energy exchange between them, and the attenuation constants of each mode can be calculated separately. If the modes are not orthogonal and have energy coupling with each other, they cannot be calculated directly alone. For each mode, in addition to conductor and medium losses, there are mode conversion losses. In a word, the factors affecting the attenuation of guided waves include the conductivity of the waveguide material, the operating frequency, the smoothness of the inner wall of the waveguide, the size of the waveguide, the loss of the filling medium, the working mode and so on.
Specification
Name | Rectangular Straight Waveguide |
Specification | Customized |
Frequency Range | 3.94-5.99GHz |
VSWR | ≤1.1 |
Insertion Loss | ≤0.15dB |
Waveguide Model | WR187 |
Package | Wooden box & carton |
Features
1.Rectangular waveguide cannot transmit TEM wave, only TE wave or TM wave.
2.Generally speaking, the main mode of rectangular waveguide (A > B) is TE10 mode.
3.The cutoff wavelength of rectangular waveguide is 2A.
4.The single-mode transmission condition is that the wavelength is greater than 2b and the wavelength is less than 2a and greater than A.
5.Rectangular waveguide has larger power capacity and smaller attenuation.
FAQ
1.Q: Are you a manufacturer or trading company?
A:Yes, we are manufacturer.Our company has 15 years of professional experience in the telecom field, which can design, manufacture a wide range of microwave waveguide components, coaxial components, antennas and other telecommunication components to global market.
2.Q: How to make an OEM order?
A: 1.We will manufacture these products based on the mechanical drawings you provided. Some minor alterations might occur during the process of production to ensure we can meet your electrical specs requirements. Alternatively, we may go for the first set as samples and see whether it meet your specification requirements. After communication, the buyer and the seller reach an agreement on product details, packaging, purchase quantity, unit price, delivery time and payment terms.
2.The buyer sends a formal PO (purchase order) or the seller sends a formal PI (proforma invoice) with detailed terms and conditions.
3.Q: How do you solve after-sales service issues?
A: After receiving the goods, if you have any dissatisfaction or other issues, please contact us ASAP, we will give you a fast response and reasonable solution.
4.Q: How long is your delivery time?
A:Usually 7-15 working days after receiving your 100% payment. For bulk orders: 15-35 working days after receiving the deposit.
5.Q: How do I get samples?
A: We need to receive your payment before we can send the samples to you. After the customer confirms the order, we will reduce the sample cost. However, if you are our regular customer, we can send the sample to you and then deduct it from your account in the next transaction.
6.Q: What are your payment terms?
A: Small batch orders or urgent orders, you can choose PayPal, Western Union, Escrow to facilitate buyers, 100% payment before shipment; for large orders: 30%/50% of T/T as deposit, the balance before shipment.
7.Q: How about the warranty?
A: We can provide 1 year warranty.
