Usb Slip Ring
Place of Origin: Shaanxi, China
Brand Name: EFINE
Product name: Usb Slip Ring
Installation: Flange
Material: Inner gold and gold contact
Sample: Available
Packing: Wooden Box
Introduction
The Usb slip ring is a rotatable USB data cable slip ring specially used for 360-degree rotation to transmit USB data. It is specially designed for USB signals. It can not only transmit USB1.0, USB2.0, USB3.0 data signals, but also can be mixed The electrical power channel and signal channel have the advantages of stable transmission, no packet loss, no string code, small return loss, and small insertion loss.
Usb slip ring products can be combined with electric slip rings to transmit USB data and power at the same time to meet different requirements. Unique structural design and technical process can prevent external interference and internal crosstalk.
Specification
Electrical & Electronics | Mechanical | Enviromental | |||
Number of Circuits | 2 circuits*1.5A/1 circuit*DC/ 2 circuits*4A1 circuit*HDMI/ 1 circuit*USB2.0 | Rotating Speed | 0~100 rpm | Temperature | -20℃~+60℃ |
Current | 4A | Contact Material | Gold-to-gold | Humidity | ≤60%RH |
Voltage | 48V | Housing Material | Engineering plastic | Protection Grade | IP40 |
Dielectric Strength | ≥200V@50Hz |
Wire Type | AWG22#/AWG26# AWG28#/ AWG30#/USB2.0 /HDMI/DC | Others | |
Life Span |
/ | ||||
Insulation Resistance | ≥50MΩ@200V | ||||
Electrical Noise |
≤15mΩ(Signal Ring) |
Wire Length | Rotor: 250±5mm Stator: 250±5mm | ||
 |  |  |
Features
1. Plug and play USB interface connector
2. Type A, Type B and Micro interface are optional
3. Military-grade ring road surface treatment technology
4. No crosstalk between power signals, in line with EMC standards
5. Stable transmission, no packet loss, low insertion loss
Optional
◆ Number of USB signal loops
◆ Running speed, rated current and voltage
◆ Installation size, outlet position
◆ USB connector type
◆ Shell material
Certification
Delivery

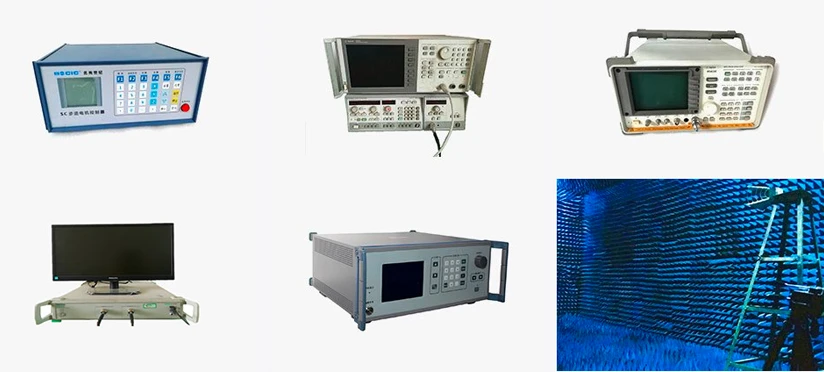

Testing Equipment
For more information about Usb Slip Ring, you can send the inquiry.
We are one of the biggest manufacture in China which are specialized in the production of Isolator, circulator, slip ring, microwave components, standard gain antenna, waveguide tubes etc.
