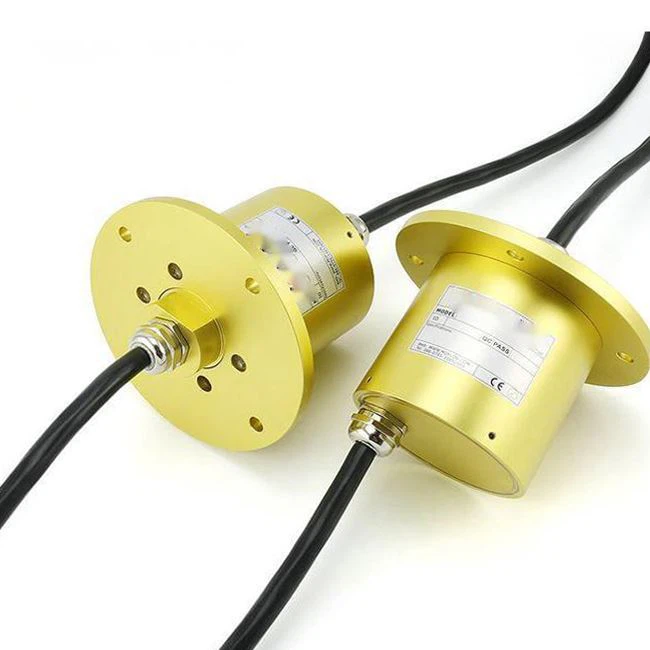

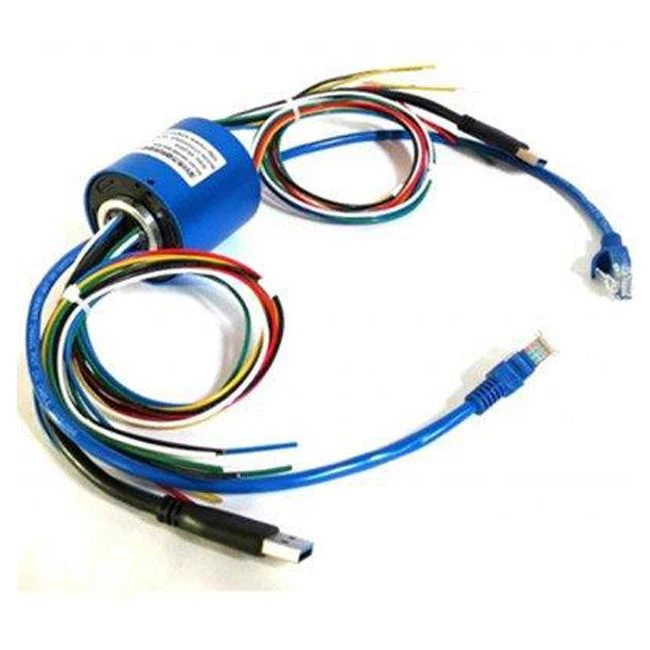

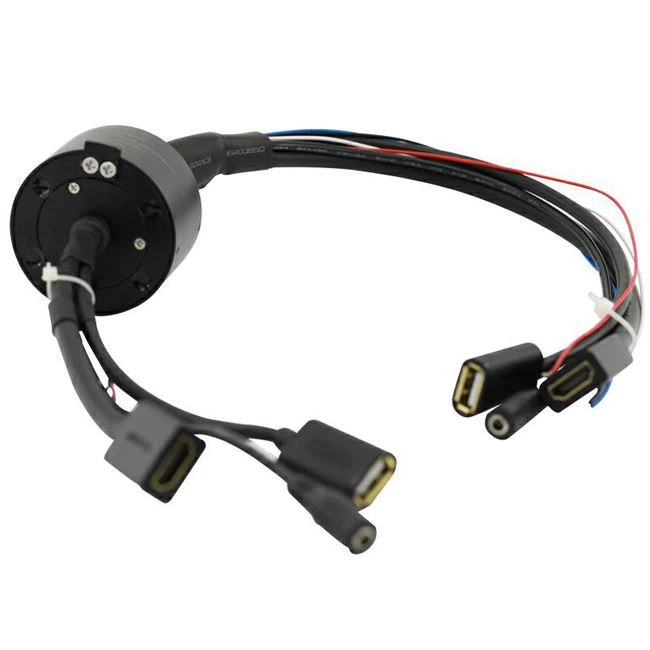

HDMI Slip Ring

1.Product Introduction

HDMI is a high-definition multimedia interface. It adopts digital video/audio interface technology and is a dedicated digital interface suitable for image transmission. It can transmit audio and video signals at the same time. The HDMI slip ring is specially designed for HDMI signal transmission and supports up to the HDMI 1.4 version, which provides the best technical solution for the transmission of high-definition video and audio signals between rotating and connected system components.

2.Feature

12 circuits models 2 amps per circuit, 240VAC/DC Precision ball bearings meet or exceed life requirements for most commercial applications Gold-gold contacts Compatible with data bus protocols Sealed units are available Flexible, color-coded, silver-plated, Teflon® UL lead wires Transfers analog and digital signals

3.Technical advantage

1. High transmission bandwidth, the maximum support HDMI1.4 version, the transmission bandwidth of 10.2Gbps can stably transmit      4K@30Hz, 2K@90Hz resolution video signals, backward compatible

2. High transmission rate, maximum support 3G-SDI standard, transmission rate 2.97Gbps, can stably transmit 1080P@60Hz resolution video signal, backward compatible

3. Can be mixed with power signal and other complex signals for transmission

4. Electrical signal transmission scheme & photoelectric conversion transmission scheme are optional

5. Excellent electrical contact material ensures low noise and long life of the signal transmission

4.Application

The high-definition video signal slip ring is one of the most widely used signal slip rings on the market. It is usually integrated with the electric slip ring and other electrical signals. There are mainly two types of high-definition video signal slip rings. One is an integrated slip ring for DP and HDMI high-definition video signals represented by computer high-definition video signals, and the other is an integrated slip ring for SDI high-definition video signals. The biggest difference between these two slip-ring signals is the wire.

In addition to the cable issues, the application fields of the two are very different. For example, HDMI slip ring and DP slip ring are mostly used in electromechanical devices that integrate multimedia functions. This is because DP and HDM are two types of cables. It has the ability to transmit high-definition video and audio and video signals at the same time. The slip ring integrated with SDI signals can only transmit high-definition video signals, but not audio signals. Therefore, SDI high-definition video signal slip rings are mostly used in high-definition monitoring, industrial machine vision, sewer detection robots, and military optical equipment.

5.Testing Equipment

Our in-house design, manufacturing, inspection, and quality control capabilities allow fast response to customer requirements.

6.Company Profile

Xi'an WinFine Telecom Technology Pte.,Ltd (WinFine Telecom hereinafter) is a leading microwave waveguide components, assemblies and antenna systems manufacturer in China. Established in 2011, WinFine Telecom is continually growing to meet customer's needs. Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs.

Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements. Our standard delivery time is only half of the average western supplier's standard delivery time.Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components. We implement TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction.

We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance
and delivery.

7.Packing

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

8.Delivery

Usually 7-15 working days after receiving your 100% payment. For bulk orders: 15-35 working days after receiving the deposit.

9.Why Choose Us?

• Our factory has expert technicians who provide comprehensive support for our products, ensuring their smooth operation.
• Only we've got better and better quality, could we achieve our customers and ourselves, too.
• Our factory has a proven track record of on-time delivery and exceptional customer service.
• Our company takes 'the guest is supreme, the good faith develops, wins by the quality, strives for perfection' as the enterprise management idea, the user satisfaction is our ultimate goal.
• Our slip ring products are designed to be versatile and adaptable, making them ideal for a wide range of applications.
• Our RF Rotary Joints integrate beautiful appearance, scientific manufacturing technology and high cost performance.
• Our slip ring products have received high ratings and positive feedback from our customers, demonstrating their exceptional quality and reliability.
• We deeply realize that only the four aspects of technology, equipment, production process, and high-quality raw materials can be combined to produce perfect products.
• We offer competitive pricing for our slip ring products and services, ensuring that our customers receive the best possible value.
• Each of us has a responsibility to create a positive atmosphere where ideas and teamwork burst forth and where professionalism and joy coexist.
