RF Shield Box

Introduction

The RF Shield Box is a shielding body of various shapes such as shells, plates, and sleeves made of conductive or magnetically conductive materials, which limits the electromagnetic capability within a certain space range, and is used to suppress radiation interference. Processed to implement a device that provides an interference-free test environment for the wireless communication device under test.

Type

According to different test requirements, it is divided into three types.

(1) Manual shielding box: easy to operate, test mobile phones, notebooks, PADs and other equipment have equipment of corresponding size. It is suitable for R&D, testing, certification and other institutions.

(2) There are many pneumatic shielding boxes: used in production testing, which improves testing efficiency and reduces operator fatigue. Test mobile phones, notebooks, PADs and other devices have corresponding size devices.

(3) Fully automatic shielding box: The entire testing process is completed by controlling the testing shielding box through the international standard RS-232 interface according to communication instructions. Generally, it is used for small RF modules and large-scale production lines to improve production efficiency.

According to the different shielding frequency of the product test, the RF Shield Box is divided into:

Ultra low frequency shielding box (0-300M), low frequency shielding box (300-800M), intermediate frequency shielding box (800-2.4G), high frequency shielding box (2.4G-5.8G).

Effect

1. Isolate external base station signals and external interference signals.

2. Absorb the RF signal in the box to reduce interference.

3. Less human impact, more accurate testing.

4. Save operation time and improve work efficiency.

5. Isolate interference from adjacent test equipment.

6. The integration of various test processes simplifies the process and improves efficiency.

Application field

(1) Application wireless communication test

(2) EMI test

(3) Coupling test

(4) RF function test

(5) Receiver sensitivity test

(6) Transmitter radiation power test

(7) Bluetooth, DAB/DMB

(8) EMI and EMS testing of small UHF equipment

(9) Mobile phone, Bluetooth, wireless router and other equipment, the test of the whole machine or chip

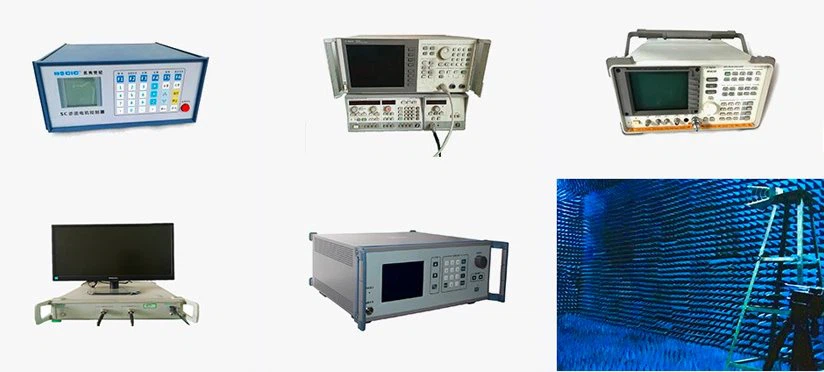

Testing Equipment

Packaging

Delivery

More details about RF Shield Box, you can contact us!
