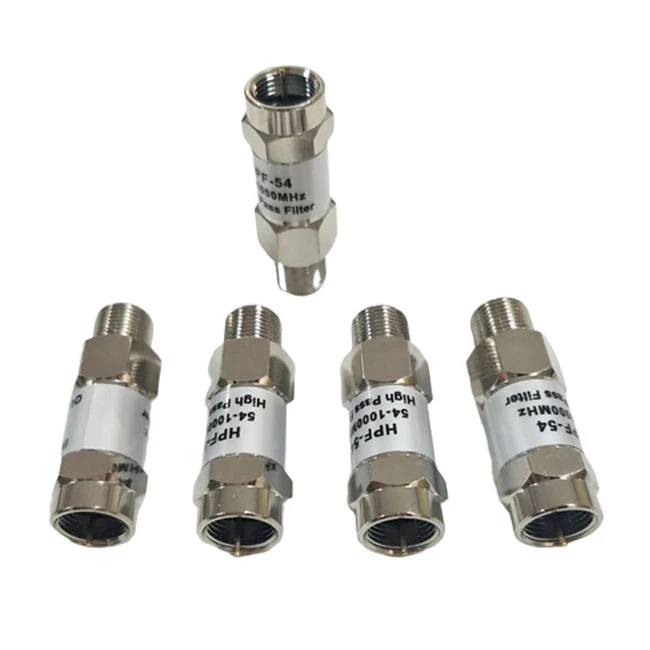

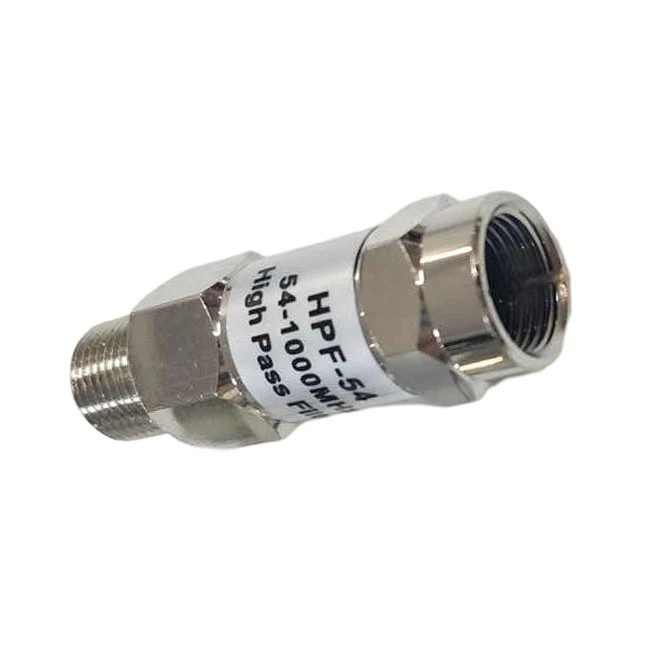

RF High Pass Filter

1.Product Introduction

The RF high pass filter is a combination device of capacitors, inductors and resistors that allows signal components above a certain frequency to pass through, while greatly suppressing signal components below the frequency. Its characteristics can be described by impulse response and frequency response in time domain and frequency domain respectively. The latter is expressed as a function with frequency as the independent variable. Generally, it is a complex variable j ω Is the complex variable function of the independent variable, with H (j ω) express.

2.Working principle

The simple high pass filter is the "first order high pass filter". Its characteristics are generally expressed by the first order linear differential equation. Its left side is identical to the first order low pass filter, and only the right side is the derivative of the excitation source rather than the excitation source itself. When the lower frequency passes through the system, there is little or no output, while when the higher frequency passes through the system, it will suffer less attenuation.

In fact, for extremely high frequencies, capacitors are equivalent to "short circuits". These frequencies can basically be output at both ends of the resistance. In other words, this system is suitable for blocking low frequency through high frequency. It is the simplest "high pass filter".

3.Effect

For the basic high pass filter, it allows the high frequency or AC component of the signal to pass through, while the low frequency or DC component is suppressed. That is to filter low frequency and retain high frequency.

Within the audio frequency range, the telephone frequency is 300Hz-3kHz, and the HiFi frequency is 20Hz-20kHz. If an unexpected vibration is mixed into the microphone and converted into an electrical signal, it will become an interference signal or distort the sound. At this time, the RF high pass filter can block the unexpected low frequency. In high-quality audio amplifier, it uses the name of infrasound filter, HPF can realize ON/OFF.

4.Type

(1) Active high pass filter and passive high pass filter are classified according to different components used.

Passive high pass filter: a filter consisting only of passive components (R, L and C), which is formed by using the principle that the reactance of capacitance and inductance components changes with frequency.

―The advantages of this type of filter are: the circuit is relatively simple, no DC power supply is required, and the reliability is high;

―Disadvantages: the signal in the passband has energy loss, and the load effect is obvious. When using inductive elements, it is easy to cause electromagnetic induction. When the inductance L is large, the volume and weight of the filter are large, and it is not applicable in the low frequency domain.

Active high pass filter: It is composed of passive components (R and C are generally used) and active components (such as integrated operational amplifier).

―The advantages of this type of filter are: the signal in the passband not only has no energy loss, but also can be amplified, the load effect is not obvious, and the interaction between multistage is very small. It is easy to form a higher-order filter by using a simple cascade method, and the filter is small in size, light in weight, and does not need magnetic shielding (because no inductive elements are used);

―Disadvantages: the passband range is limited by the bandwidth of active devices (such as integrated operational amplifiers), which requires DC power supply, is not as reliable as passive filters, and is not applicable to high-voltage, high-frequency and high-power occasions.

(2) According to the mathematical characteristics of the filter, it can be divided into first-order high pass filter, second-order high pass filter, etc.

-The above two classification methods are independent of each other. Active high pass filter is more common, such as first-order active high pass filter, second-order active high pass filter, etc.

5.Application

1. Such a RF high pass filter can direct high frequency sound to a dedicated tweeter and prevent the bass signal that may interfere with or damage the horn. Low pass filters using coils rather than capacitors can also simultaneously direct low-frequency signals to the woofer.

2. High pass and low pass filters are also used to transform in the frequency domain in digital image processing.

6.Packaging

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided. After receiving the goods, if you have any dissatisfaction or other issues, please contact us ASAP, and we will give you a fast response and reasonable solution.

7.Shipping

We will send the goods to you by DHL, FEDEX, UPS, EMS, AIR, etc. Usually 7-15 working days after receiving your 100% payment. For bulk orders: 15-35 working days after receiving the deposit.

8.Test equipment

Our microwave measurement capability makes us the best choice for the design and manufacturing of your components.

9.Why Choose us?

• We are committed to providing our customers with the highest level of quality and service in the industry.
• We emphasize that in doing anything, we should go deep into the root of the matter and grasp the context and reason of the matter so as to know how to handle it properly.
• Our team of professionals is ready to provide you with expert advice and assistance.
• Our company has a sound management system, strong technical force and advanced production equipment.
• Our products are of the highest quality and our services are second-to-none.In addition, our company has strong technical force, complete management system, a professional research team, advanced production line, advanced production equipment, advanced management mode and modern information network system, and we can provide high-quality and low-cost RF High Pass Filter to all walks of life.
• We are passionate about providing our customers with the highest level of quality and value.
• Our rewards are reduce selling prices, dynamic revenue team, specialized QC, sturdy factories, superior quality services for RF High Pass Filter.
• Our company has a long-standing history of excellence in the manufacturing of RF components.
• We implement brand strategy, making the core value of quality and technology deeply rooted in people's hearts.
