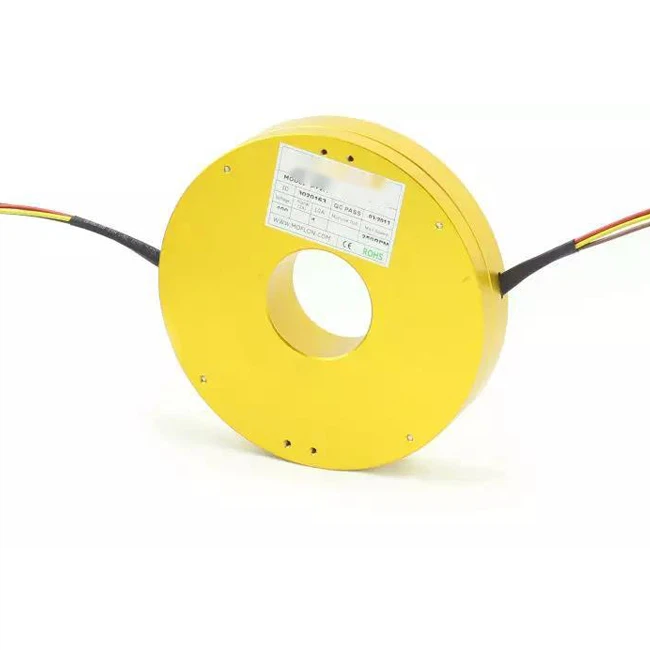

Disc Slip Ring

Introduction

Disc slip ring is a slip ring that is used for limited height space and expands the horizontal space to meet the requirements of special space series.

The contacts are made of precious metal, which has the characteristics of high stability, low torque, low loss and maintenance-free, low electrical noise, and long service time.

Function parameter

Disc-type slip rings are specially designed for rotating systems with height restrictions in the vertical direction; advanced fiber brush technology ensures low friction, low contact resistance, and no friction debris for the collector rings.

Disc slip ring series are divided into two types: integrated disc slip ring and separate disc slip ring. The one-piece disc slip ring can provide solid and different size hole options; the separate disc slip ring provides separate rotor and stator combined with PCB board design, which can meet more stringent height restrictions.

Effect

The disc slip ring is used to weld the shrapnel on the stator. The stator is designed with mounting holes, which can be connected with the customer's equipment. The shrapnel is an accessory used in a wide range of projects. It has good elasticity and is more wear-resistant than traditional products. the service life of the ring.

Application

The flat disc slip ring is mainly used for precision signal transmission, and can also mix conductive, transmit USB, Ethernet, high-definition coaxial signals and other signals.

At present, it has been widely used in precision equipment such as radar, satellite receiver, test turntable, and electrical test equipment. The disc slip ring adopts a special vacuum infusion process, and the brush is made of precious metal material, which has high stability, thus ensuring excellent electrical transmission performance and rotation performance.

Packing & Delivery

Certificate

Our Service

Service standards: We are committed to provide a high quality and responsive service to all clients.

OEM: Available for wave guide series.

Stable quality: implement the whole process of quality control, meticulous and strict inspection!

Reasonable price: Internal cost control, reducing expenses, benefiting customers!

Professional selection: more than 5 years of professional engineer selection, to provide you with alternative models of each factory, system solutions

Fast delivery: adequate stocking, shortened delivery time!

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3~5working days to reach from our side to your side, which is very convenient for your business.
