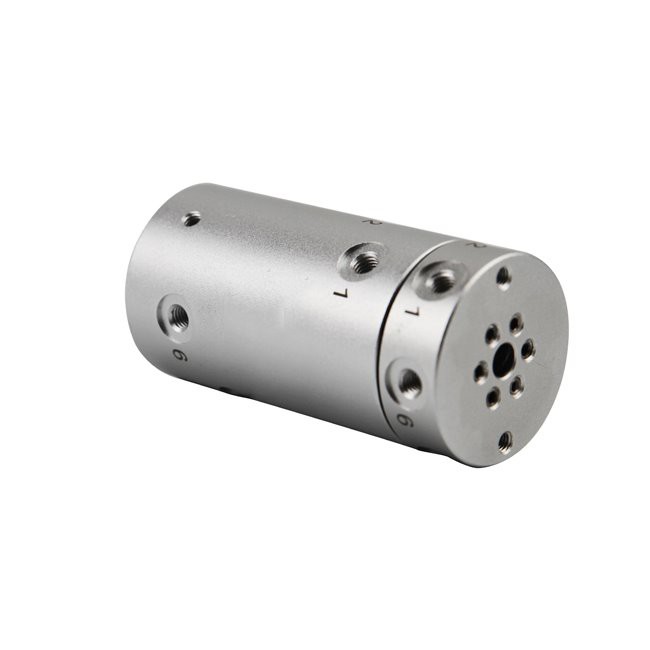

Hydraulic Slip Ring
Place of Origin: Shaanxi, China
Brand Name: EFINE
Product name: Hydraulic Slip Ring
Outer Size: 56mm
Volt AC/DC: mV~240Vac/Vdc
Speed: 300RPM
Inner Size: 12mm
Circuits: 2-36
Current: 2A/5A/15A
Tube Size: 12mm
Introduction
Hydraulic slip ring is a kind of equipment, also known as hydraulic rotary joint, which is used to transfer compressed air, cooling water, hydraulic oil, heat transfer oil and other fluid media between two relatively rotating pipes. At present, it is widely used in the hydraulic system of large machinery equipment.
Specification
| Max. Operating Pressure | Positive Pressure 1Mpa, Vacuum -1.5kPa | Working Speed | 0~100rpm |
Medium Type | Air | Working Temp. | -20°C~+60°C |
| Passages(Gas/Flow) | 8 in 8 out | Work Humidity | ≤60%RH |
| Pipe Size | ∅4mm pipe, M5 port | Housing Material | Aluminum Alloy |
| Torque | ≤1.3 N.m | IP Grade | IP51 |
Type
The hydraulic slip ring is divided into single channel, double channel and multi-channel according to the number of channels, and M5 can be connected; G1/8； G1/4； G3/8； G1 / 2 connector, 4 ~ 12mm pipe diameter, can mix circuits, different sizes of gas pipes, and special slip rings can be customized.
 |  |
 |  |
Working principle
As a self balancing element, the hydraulic slip ring can transmit pressure oil or other fluids to the hydraulic rotary cylinder, so that the equipment piston can move left and right to realize the radial release of the power chuck. In the return process, the hydraulic slip ring benefits from the pressure oil minus the pressure, and is reset by the spring to realize chuck clamping. The rotary sealing part of the hydraulic slip ring is installed on the core shaft of the equipment. Its function is to form two independent sealing spaces to isolate the oil inlet chamber and the oil return chamber.
Certificate
Testing Equipment
Packing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
