Waveguide Variable Attenuator
Place of Origin: Shaanxi, China
Material: Copper, Aluminum, etc.
Feature: Easy Assembly
Model Number: OEM
Application: Electromagnetic Theory
Sample: Available
MOQ: 1 Set
Introduction
The Waveguide Variable Attenuator is equipped with a micrometer for quick reset. Variable attenuators with calibration charts can be used as direct-reading attenuators for bench test equipment. Variable attenuators are generally used in test equipment and model machine components that require attenuation.
Specification
Part No | Waveguide | Flange | Frequency (GHz) | Attenuation | VSWR (Max) |
AT42V | WR-42 | UG-595/U | 18.0-26.5 | ~30dB | 1.15 |
AT28V | WR-28 | UG-599/U | 26.5-40.0 | ~30dB | 1.15 |
AT22V | WR-22 | UG-383/U | 33.0-50.0 | ~30dB | 1.15 |
AT19V | WR-19 | UG-383/U | 40.0-60.0 | ~30dB | 1.15 |
AT15V | WR-15 | UG-385/U | 50.0-75.0 | ~30dB | 1.15 |
AT12V | WR-12 | UG-387/U | 60.0-90.0 | ~30dB | 1.15 |
AT10V | WR-10 | UG-387/U | 75.0-110.0 | ~30dB | 1.15 |
AT8V | WR-8 | UG-387/U | 90.0-140.0 | ~30dB | 1.2 |
AT6V | WR-6 | UG-387/U | 110.0-170.0 | ~30dB | 1.2 |
Feature
1. Attenuation from 3dB-30dB or other specified values
2. Low standing wave, usually reaching 1.15
3. Insertion loss 0.5dB
4. Low power design
5. Can also provide precision adjustable attenuator or other customized products
 |  |  |
Application
1. Test Equipment
2. Subsystem
3. Model machine
Shipping
Inspection Equipment

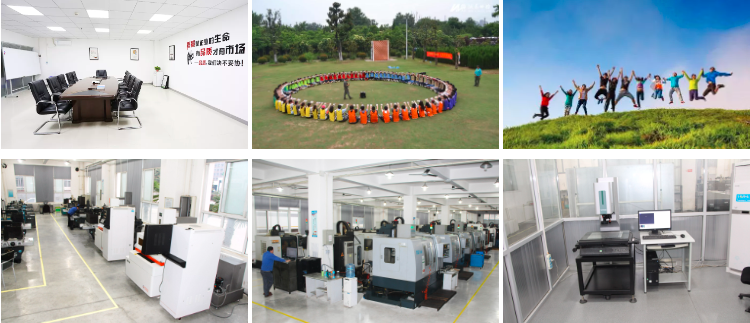

Company Profile
Xi'an WinFine Telecom Technology Pte.,Ltd (WinFine Telecom hereinafter) is a leading microwave waveguide components, assemblies and antenna systems manufacturer in China. Established in 2011, WinFine Telecom is continually growing to meet customer's needs. Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs.
Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements. Our standard delivery time is only half of the average western supplier's standard delivery time.
Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components. We implement TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction.
We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery.
