Waveguide Bend
EFine Electronics offers a standard product line of E-bends and H-bends covering waveguide sizes WR10 thru WR430. Multi-degrees, additional sizes, configurations and combinations are available on request.
Place of Origin: Shaanxi, China
Brand: EFine
Product name: Waveguide Bend
Condition: Original 100%
Service: Customized OEM
Sample: Available
MOQ: 1 Set
Packing: Carton
【Specifications】
|
Model No* |
Freq Range (GHz) |
VSWR (Max) |
Std Dimensions A×B×R (mm)** |
WG Type |
Flange |
Material |
|
|
IEC |
EIA |
||||||
|
EF-22WEB… |
1.72-2.61 |
1.15 |
190×190×95 |
R22 |
WR430 |
FDP/FDM |
Al/Cu |
|
EF-22WHB… |
1.72-2.61 |
1.15 |
250×250×152 |
R22 |
WR430 |
FDP/FDM |
Al/Cu |
|
EF-26WEB… |
2.17-3.30 |
1.15 |
100×100×40 |
R26 |
WR340 |
FDP/FDM |
Al/Cu |
|
EF-26WHB… |
2.17-3.30 |
1.15 |
180×180×100 |
R26 |
WR340 |
FDP/FDM |
Al/Cu |
|
EF-32WEB… |
2.60-3.95 |
1.10 |
100×100×40 |
R32 |
WR284 |
FDP/FDM |
Al/Cu |
|
EF-32WHB… |
2.60-3.95 |
1.10 |
160×160×100 |
R32 |
WR284 |
FDP/FDM |
Al/Cu |
|
EF-40WEB… |
3.22-4.90 |
1.10 |
80×80×40 |
R40 |
WR229 |
FDP/FDM |
Al/Cu |
|
EF-40WHB… |
3.22-4.90 |
1.10 |
120×120×78 |
R40 |
WR229 |
FDP/FDM |
Al/Cu |
|
EF-48WEB… |
3.94-5.99 |
1.10 |
80×80×40 |
R48 |
WR187 |
FDP/FDM |
Al/Cu |
|
EF-48WHB… |
3.94-5.99 |
1.10 |
80×80×40 |
R48 |
WR187 |
FDP/FDM |
Al/Cu |
|
EF-58WEB… |
4.64-7.05 |
1.10 |
80×80×40 |
R58 |
WR159 |
FDP/FDM |
Al/Cu |
|
EF-58WHB… |
4.64-7.05 |
1.10 |
80×80×40 |
R58 |
WR159 |
FDP/FDM |
Al/Cu |
|
EF-70WEB… |
5.38-8.17 |
1.10 |
60×60×30 |
R70 |
WR137 |
FDP/FDM |
Al/Cu |
|
EF-70WHB… |
5.38-8.17 |
1.10 |
80×80×50 |
R70 |
WR137 |
FDP/FDM |
Al/Cu |
|
EF-84WEB… |
6.57-9.99 |
1.10 |
50×50×25 |
R84 |
WR112 |
FBP/FBM/FBE |
Al/Cu |
|
EF-84WHB… |
6.57-9.99 |
1.10 |
60×60×35 |
R84 |
WR112 |
FBP/FBM/FBE |
Al/Cu |
|
EF-100WEB… |
8.20-12.40 |
1.10 |
40×40×20 |
R100 |
WR90 |
FBP/FBM/FBE |
Al/Cu |
|
EF-100WHB… |
8.20-12.40 |
1.10 |
55×55×35 |
R100 |
WR90 |
FBP/FBM/FBE |
Al/Cu |
|
EF-120WEB… |
9.84-15.0 |
1.10 |
40×40×20 |
R120 |
WR75 |
FBP/FBM/FBE |
Al/Cu |
|
EF-120WHB… |
9.84-15.0 |
1.10 |
45×45×30 |
R120 |
WR75 |
FBP/FBM/FBE |
Al/Cu |
|
EF-140WEB… |
11.9-18.0 |
1.10 |
40×40×20 |
R140 |
WR62 |
FBP/FBM/FBE |
Al/Cu |
|
EF-140WHB… |
11.9-18.0 |
1.10 |
40×40×25 |
R140 |
WR62 |
FBP/FBM/FBE |
Al/Cu |
|
EF-180WEB… |
14.5-22.0 |
1.10 |
30×30×15 |
R180 |
WR51 |
FBP/FBM/FBE |
Al/Cu |
|
EF-180WHB… |
14.5-22.0 |
1.10 |
35×35×20 |
R180 |
WR51 |
FBP/FBM/FBE |
Al/Cu |
|
EF-220WEB… |
17.6-26.7 |
1.15 |
30×30×15 |
R220 |
WR42 |
FBP/FBM/FBE |
Al/Cu |
|
EF-220WHB… |
17.6-26.7 |
1.15 |
35×35×20 |
R220 |
WR42 |
FBP/FBM/FBE |
Al/Cu |
|
EF-260WEB… |
21.7-33.0 |
1.15 |
30×30×15 |
R260 |
WR34 |
FBP/FBM/FBE |
Al/Cu |
|
EF-260WHB… |
21.7-33.0 |
1.15 |
35×35×20 |
R260 |
WR34 |
FBP/FBM/FBE |
Al/Cu |
|
EF-320WEB… |
26.3-40.0 |
1.15 |
25×25×10 |
R320 |
WR28 |
FBP/FBM/FBE |
Al/Cu |
|
EF-320WHB… |
26.3-40.0 |
1.15 |
30×30×15 |
R320 |
WR28 |
FBP/FBM/FBE |
Al/Cu |
|
EF-400WEB… |
32.9-50.1 |
1.20 |
25×25×10 |
R400 |
WR22 |
FUGP |
Cu |
|
EF-400WHB… |
32.9-50.1 |
1.20 |
20×20×10 |
R400 |
WR22 |
FUGP |
Cu |
|
EF-500WEB… |
39.2-59.6 |
1.20 |
25×25×10 |
R500 |
WR19 |
FUGP |
Cu |
|
EF-500WHB… |
39.2-59.6 |
1.20 |
25×25×10 |
R500 |
WR19 |
FUGP |
Cu |
|
EF-620WEB… |
49.8-75.8 |
1.20 |
20×20×10 |
R620 |
WR15 |
FUGP |
Cu |
|
EF-620WHB… |
49.8-75.8 |
1.20 |
25×25×10 |
R620 |
WR15 |
FUGP |
Cu |
|
EF-740WEB… |
60.5-91.9 |
1.20 |
20×20×10 |
R740 |
WR12 |
FUGP |
Cu |
|
EF-740WHB… |
60.5-91.9 |
1.20 |
25×25×10 |
R740 |
WR12 |
FUGP |
Cu |
|
EF-900WEB… |
73.8-100 |
1.20 |
20×20×10 |
R900 |
WR10 |
FUGP |
Cu |
|
EF-900WHB… |
73.8-100 |
1.20 |
25×25×10 |
R900 |
WR10 |
FUGP |
Cu |
*Indicates Model Number. See Ordering Information for complete part number.
**Legs (A,B) available in other sizes. Consult sales engineer for more information.

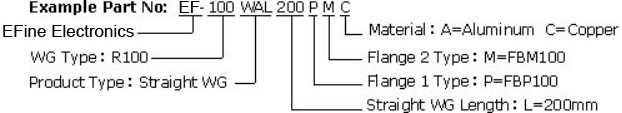

【Ordering Information】
▪ Flange type: Multiple types available - see EFine Electronics Flanges page
▪ Finish: Corrosion protection plus black/grey top coat
▪ Bends other than 90˚ available on request
▪ Mitered bends available on request
