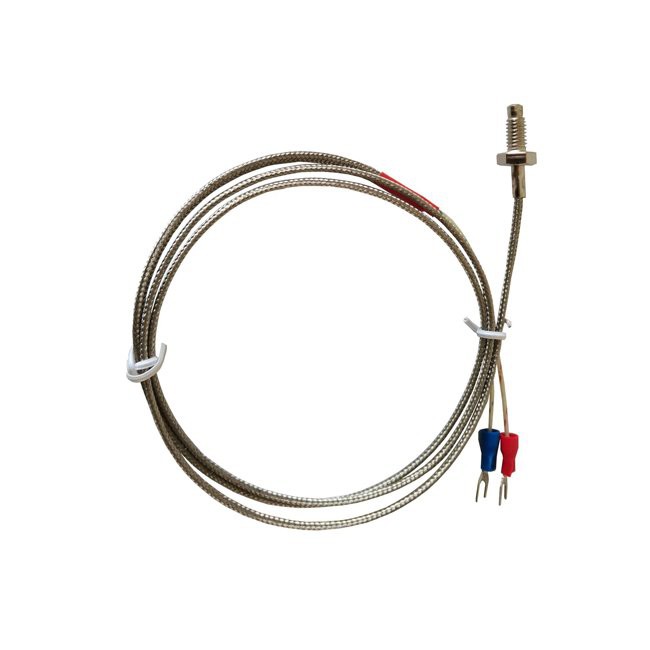

Screw in Thermocouple
Warranty:1 years
Customized support:OEM
Place of Origin:Shaanxi, China
Brand Name:EFINE
Model Number:ESMWRN
Product name:ESMWRN M6 screw thermocouple temperature sensor probe
Index number::K /E /PT100
Temperature range:0~600°C
Last line Material:shielded cable
Thread Size:M6 screw
The probe material:Stainless steel
Tail material:metal shielded wire
Length of tail line:0.5m 1m 1.5m 2m 3m 4m 5m
Description
Product structure: It consists of main components such as temperature sensing elements, installation fixtures and junction boxes.

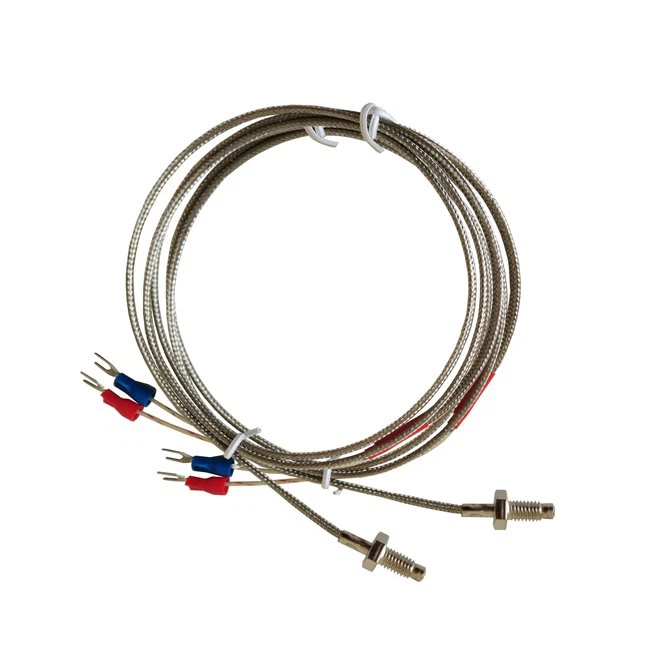

Screw in thermocouple is an extension of standard sheathing thermocouples and offer the ability to fix the measuring point with superlative accuracy. The sheathing thermocouple is permanently attached to a stainless steel housing, which has a thread for screwing into a threaded hole.
This ensures that the Screw in thermocouple is permanently fixed in the planned measuring position. Installation is made easier thanks to an Allen fitting on the housing. The type, diameter and installation length of the sheathing thermocouple can chosen to suit. Various different thread types, sizes and wrench widths can also be accommodated.
This design is especially robust and suitable for fixed installation in machinery or motors operating at very high temperatures of up to 1,100 °C. This design is even suitable for measuring environments that are under pressure since the measuring tip is sealed in a pressure-tight manner to the wire connector.
Specification
Item | Value |
Warranty | 1 years |
Customized support | OEM |
Place of Origin | Shaanxi, China |
Brand Name | EFINE |
Model Number | ESMWRN |
Product name | ESMWRN M6 screw thermocouple temperature sensor probe |
Index number: | K /E /PT100 |
Temperature range | 0~600°C |
Last line Material | shielded cable |
Thread Size | M6 screw |
The probe material | Stainless steel |
Tail material | metal shielded wire |
Length of tail line | 0.5m 1m 1.5m 2m 3m 4m 5m |
Application
As a transmitter for measuring temperature, industrial fabricated thermocouples are usually used in conjunction with display instruments, recording instruments and electronic regulators. It can directly measure liquid, steam and gas media in the range of 0°C to 400°C in various production processes. and the surface temperature of the solid.
Installation method
The installation is to fix it on the object to be measured, first tighten the connecting bolt on the object to be measured, then close the thermocouple to the object to be measured, tighten the ferrule screw, and finally screw the locking ferrule.
Packing & Delivery

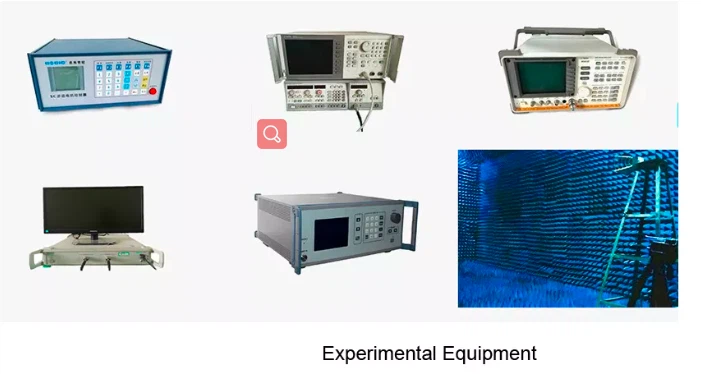

Manufacturing Technique
