RF Power Amplifier With 500W Noimal Power
Type:EF-UWBPA1M30M-500W
Starting frequency(MHz):1
Termination frequency(MHz):30
Gain(dB):57
P1dB(dBm):54
Psat(dBm):57
Supply voltage(V):48
Radio frequency interface:SMA/N
In stock:10
Product characteristic
- High-powerdesign,500W nominal power
- Class AB amplifier
- Built-in protection circuit
- High reliability design,which can work at full power for a long time
- 50 ohm input/output
Product Application
- Testing facility
- Communication system

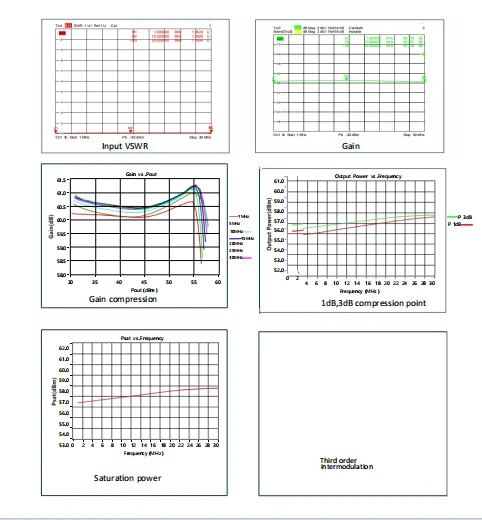

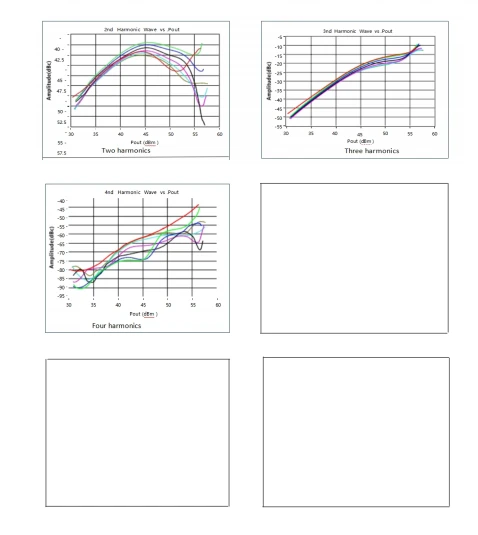

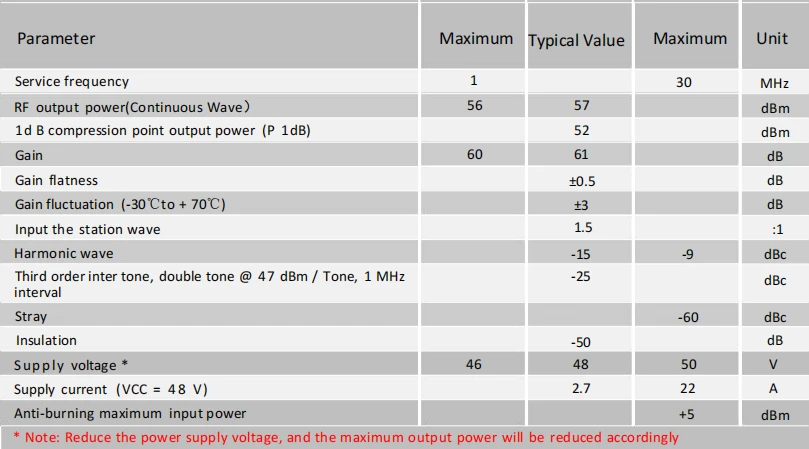

Technical Indicators:50Ω,25℃
environment Parameter

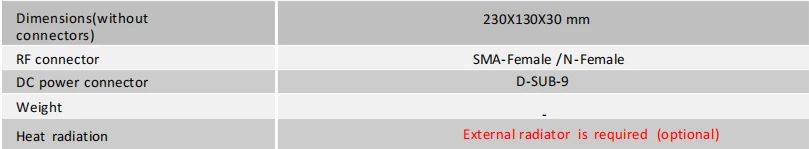

Mechanical Parameter
Packing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Xi'an WinFine Telecom Technology Pte.,Ltd (WinFine Telecom hereinafter) is a leading microwave waveguide components, assemblies and antenna systems manufacturer in China. Established in 2011, WinFine Telecom is continually growing to meet customer's needs.
Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs. Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements.
Our standard delivery time is only half of the average western supplier's standard delivery time.
Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components.
We implement TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction. We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery.

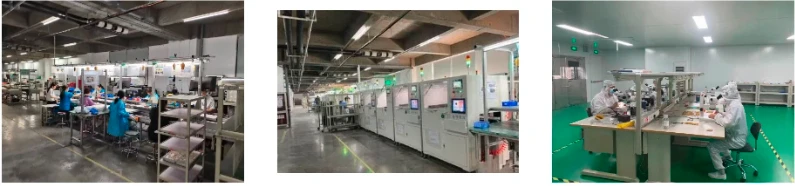

Our Factory
fAQ
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 20 business days |
| ≤50 pcs | 60 business days |
| >50 pcs | 90 business days |
| >200 pcs | Negotiate |
